Pharmaceutical Capsule Filling Machine Semi Automatic NJP-400 series

Brand Name : Canaan Kaixinlong

Model Number : NJP-400

Place of Origin : Wenzhou China

MOQ : 1

Price : 18000$

Payment Terms : T/T, L/C

Packaging Details : The size of non-fumigated wooden cases varies according to the size of the machine

Contact Now

Overview of the machine:

High-Tech Pharmaceutical Machine Pharmaceutical Machine Pharmaceutical Technology

The NJP-400 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 400Capsules/min
No.of segment bores36 3
Suitable fof capsule 00#-5#
Total power 4Kw(Standard configuration)
Overall weight90 900Kgs
Overall diemensions 760(+304)mm*780mm(+304)*1900mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Expansion diagram of the working principle:

Pharmaceutical Capsule Filling Machine Semi Automatic NJP-400 series

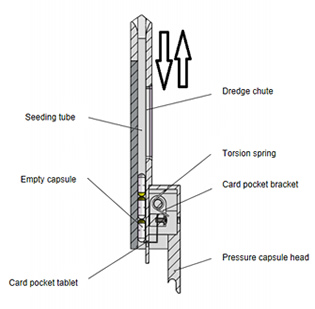

Sort of empty capsule:
principle
The seeding tube is equipped with multiple circular holes and communicate with the capsule hopper, and the channel is equipped with capsule tablets.
The seeding sac tube slides up and down to drop the empty capsule into the pore channel. When the seeding capsule tube goes up, the capsule piece will jam the capsule. When the seeding tube falls down, the capsule holder rotates and drives the capsule to release the capsule, and the capsule falls out of the hole.
 Pharmaceutical Capsule Filling Machine Semi Automatic NJP-400 series

Orientation of the empty capsule:

Broadcast description
The capsule head always acts in the middle of the capsule body, and the capsule head pushes the capsule to make a U-turn movement, which always pushes the capsule body to the edge of the capsule comb, and then presses the capsule head down to turn the capsule over and push it vertically into the module hole.
principle
1. The thrust point of the capsule head is on the capsule body;
2. The width of the chute is smaller than the outer diameter of the capsule cap, which is larger than the outer diameter of the capsule body. It only has a tightness effect on the capsule cap and does not contact with the capsule body.
Orientation of the empty capsule

Pharmaceutical Capsule Filling Machine Semi Automatic NJP-400 series
